Weld-End Inline Pipe Sight Glass
See inside your process line with the Borlan Fluid weld-end inline pipe sight glass. The transparent cylindrical viewing section, weld-end connections and external tie rods are shown in the product images. Reference sizes span 19-102 mm; confirm materials, duty conditions and an approved drawing for your application.

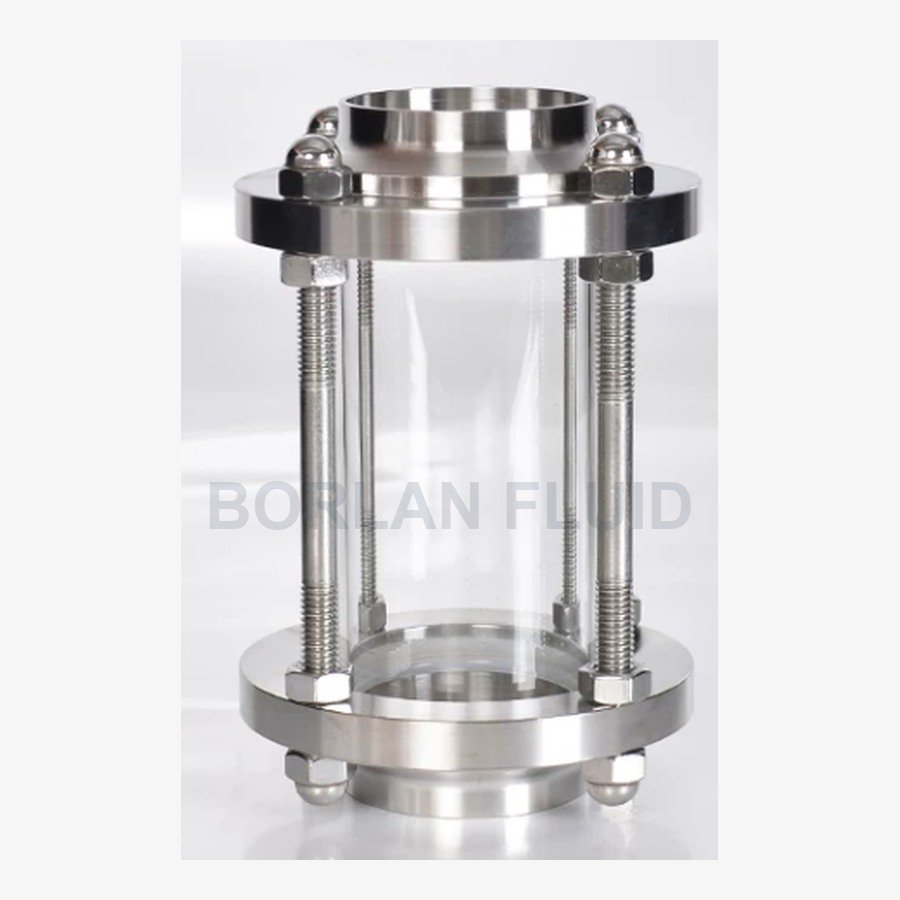

The Borlan Fluid Weld-End Inline Pipe Sight Glass provides a clear view into a process line. Its transparent cylindrical viewing section sits between two weld-end connections, while external tie rods secure the end assemblies. The open view from several directions helps operators check flow presence and visible process conditions at the installed inspection point.
Designed for visual checks in a welded pipeline

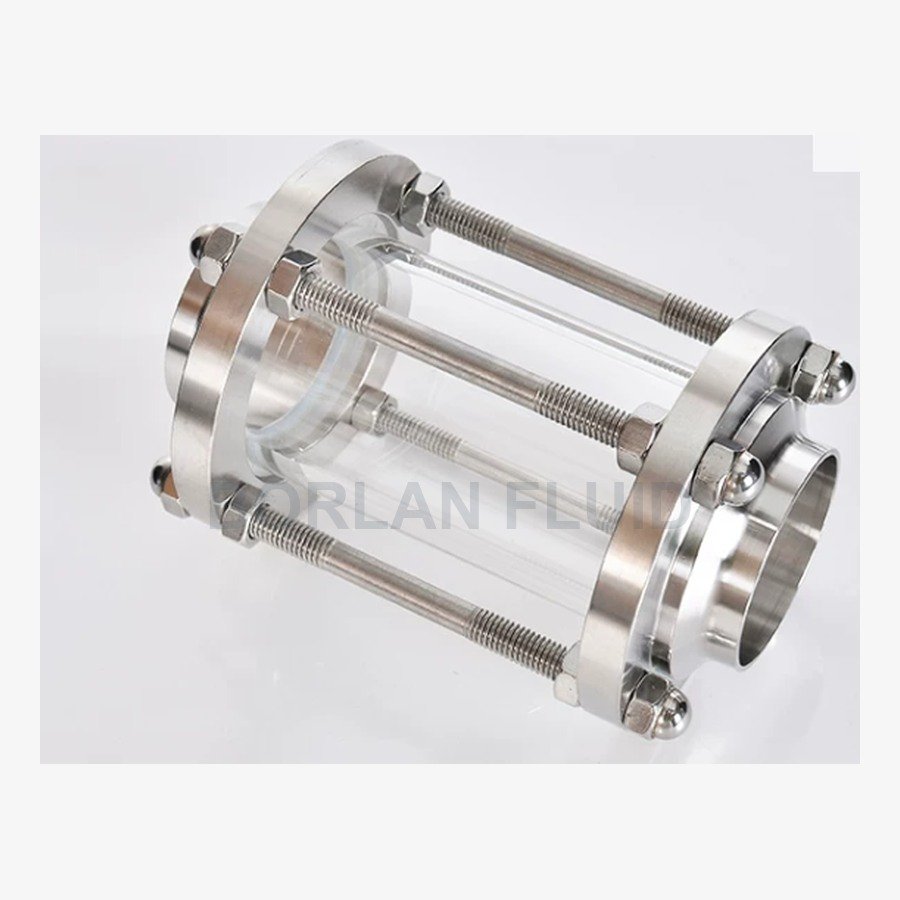

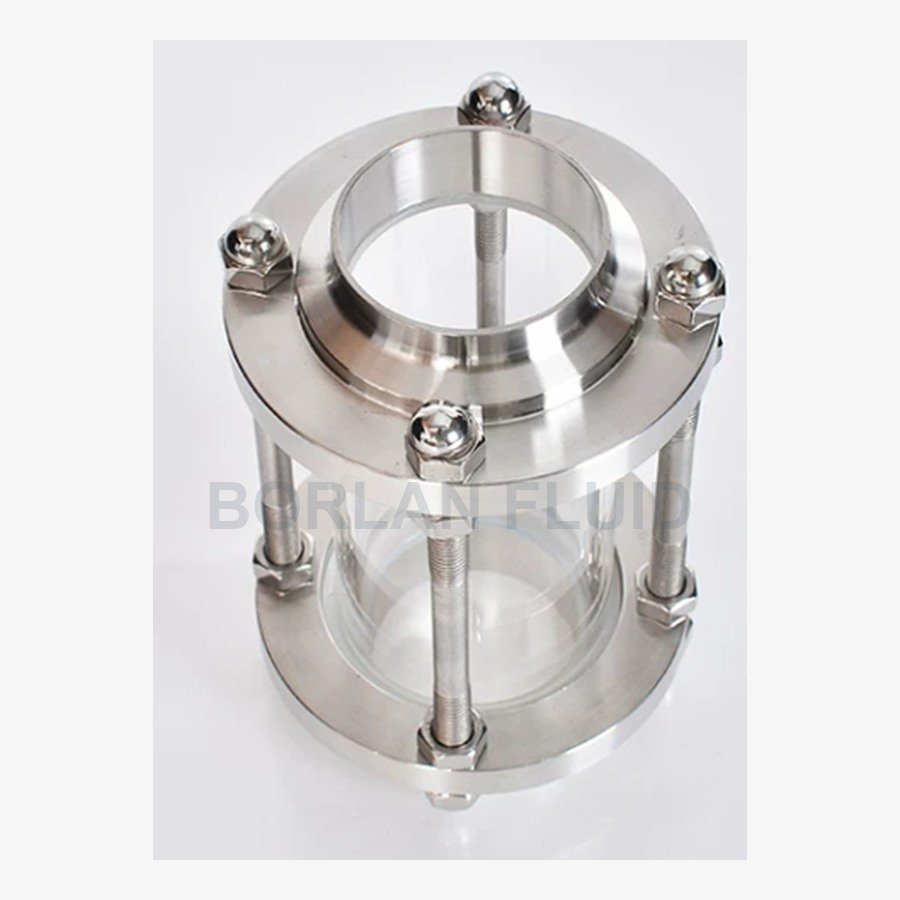

When a pipe run needs a direct viewing point, this inline sight glass brings the process into view through a cylindrical window. The photographs show its opposing weld ends, clear viewing section, bolted end assemblies and external rods. Borlan Fluid can review the connection dimensions and assembly details against your project drawing before you place an order.
What you can specify
- Connection size: select from the reference sizes below, Ø19 through Ø102.
- Installation fit: check the A, B, C and H labels against the supplied dimension drawing and your mating pipe.
- Project conditions: tell us the process medium, operating pressure and temperature, cleaning method, preferred metal and window materials, and any documentation requirements.
Material grade, window material, seal, pressure rating and temperature limit depend on the confirmed configuration. Request an approved drawing and specification for your application.
Reference dimensions

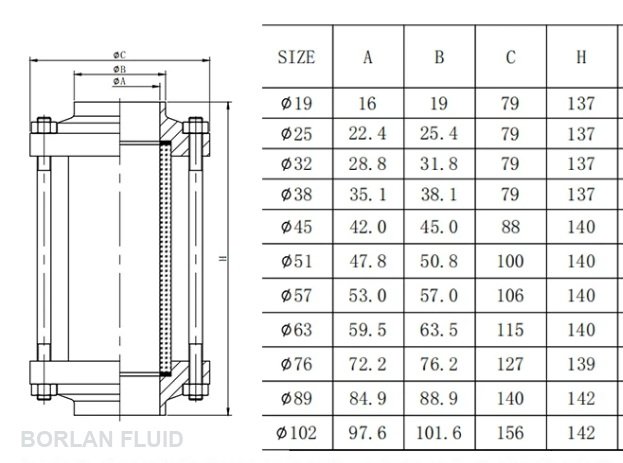

The drawing and measurements below were supplied for this weld-end pipe sight glass. All values are in millimetres. The letters A, B, C and H follow the labels on the drawing; verify the final connection and envelope dimensions on the approved order drawing.
| Size | A (mm) | B (mm) | C (mm) | H (mm) |
|---|---|---|---|---|
| Ø19 | 16 | 19 | 79 | 137 |
| Ø25 | 22.4 | 25.4 | 79 | 137 |
| Ø32 | 28.8 | 31.8 | 79 | 137 |
| Ø38 | 35.1 | 38.1 | 79 | 137 |
| Ø45 | 42.0 | 45.0 | 88 | 140 |
| Ø51 | 47.8 | 50.8 | 100 | 140 |
| Ø57 | 53.0 | 57.0 | 106 | 140 |
| Ø63 | 59.5 | 63.5 | 115 | 140 |
| Ø76 | 72.2 | 76.2 | 127 | 139 |
| Ø89 | 84.9 | 88.9 | 140 | 142 |
| Ø102 | 97.6 | 101.6 | 156 | 142 |
Choosing the right pipe sight glass
Start with the pipe size and connection method. This model uses weld ends; if your line requires another connection style, browse our pipeline sight glass range. Share a process sketch or mating pipe dimensions with Borlan Fluid so our team can help you check the proposed configuration.
Frequently asked questions
Can I order a specific window or sealing material?
Please include your preferred window, seal and metal materials in the inquiry. Availability and suitability should be confirmed for the selected size and process conditions.
Is the listed size the same as the final weld-end fit?
The table is a reference for the pictured design. Check the labeled drawing and obtain the approved order drawing before fabrication or welding.
What should I send for a quotation?
Send the size, mating pipe dimensions or standard, process medium, operating pressure and temperature, cleaning requirements, preferred materials, quantity, and any requested documentation.
Ask Borlan Fluid about your weld-end sight glass: contact our team with your drawing and duty conditions. For more product and application videos, visit the Borlan Fluid YouTube channel.
