BL101-1 Integrated Union Sight Glass Light
Classic integrated union sight glass light for vessel observation. The Borlan Fluid BL101-1 catalog lists DN80–DN150 reference sizes and halogen or LED light-source options. Send your connection drawing and operating conditions to confirm the selected assembly.
The Borlan Fluid BL101-1 integrated union sight glass light combines a vessel viewing opening and a light in one compact, classic-style assembly. It is intended for projects that need an observation point with illumination at the same connection. The 2025 Borlan catalog lists halogen or LED light-source options for BL101-1. Specify the required light source when requesting a quotation so that the electrical package and installation drawing can be checked together.
One connection for viewing and lighting

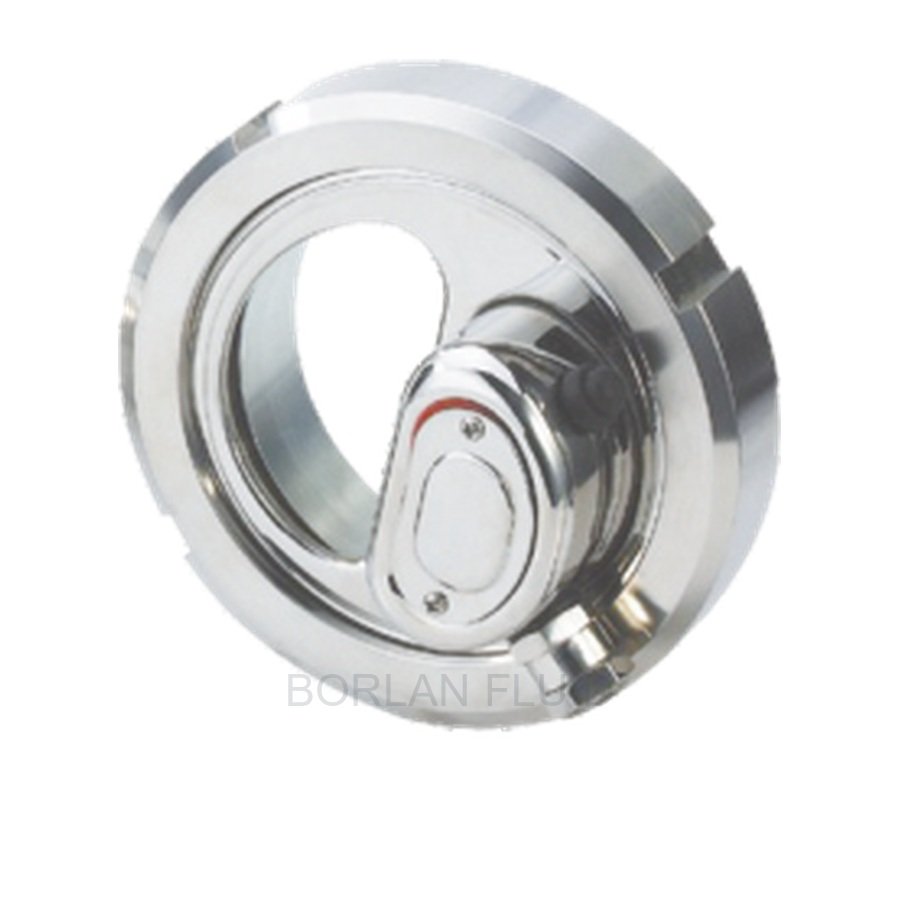

A union-style integrated sight glass light can help operators inspect a vessel through a dedicated viewing point while the light illuminates the process area. The BL101-1 catalog view shows the circular union body and the light module beside the opening. When reviewing a project, Borlan Fluid can match the selected size, mating connection and viewing direction to the vessel drawing.
BL101-1 is the catalog’s classic version. It should be specified separately from BL101-2, which is a different model. Do not substitute another model’s dimensions or electrical information when planning the mounting space for BL101-1.
BL101-1 catalog reference dimensions

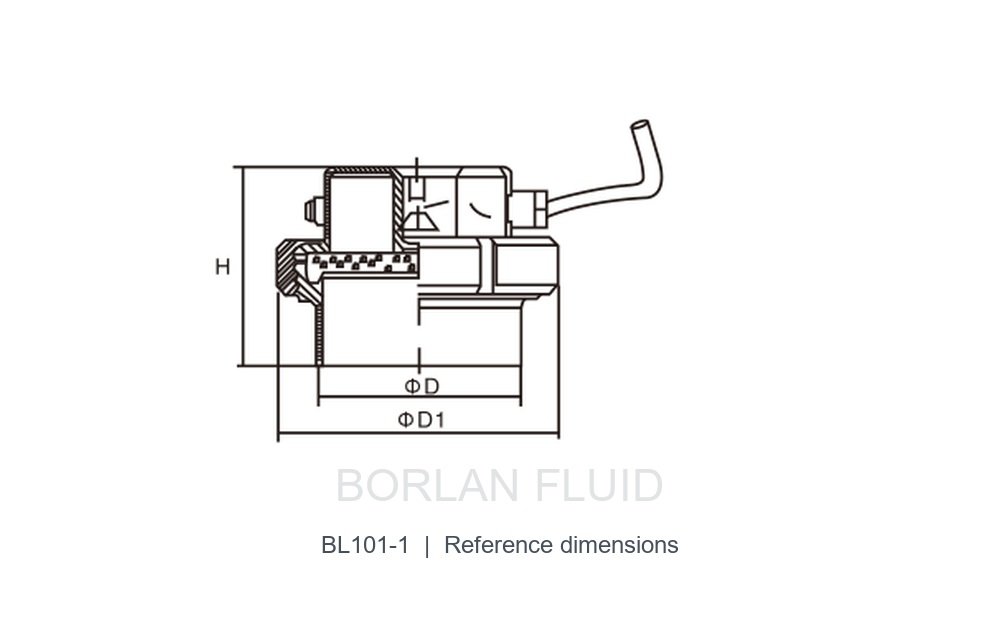

The catalog drawing labels the connection diameter D, overall diameter D1 and height H. The four listed sizes are shown below in millimetres. These are catalog references; request an approved drawing for the selected assembly before machining or welding the vessel connection.
| Size | D (mm) | D1 (mm) | H (mm) |
|---|---|---|---|
| DN80 | 89.0 | 127.0 | 85.0 |
| DN100 | 108.0 | 148.0 | 93.3 |
| DN125 | 133.0 | 178.0 | 88.0 |
| DN150 | 159.0 | 210.0 | 96.0 |
What to include in an inquiry
- Size and connection: choose DN80, DN100, DN125 or DN150 and send the vessel’s mating-connection drawing.
- Light source: state whether the halogen or LED option is required and confirm the complete electrical supply arrangement.
- Process conditions: provide the medium, operating pressure and temperature, cleaning method and required inspection documents.
- Project details: specify the viewing direction, available installation space, quantity and any required material or seal selection.
The catalog entry does not establish one universal voltage, power rating, pressure limit, temperature limit, material grade or certification for every BL101-1 configuration. These details should be confirmed against the selected build and its approved drawing.
Frequently asked questions
Is BL101-1 available with LED lighting?
Yes. Borlan’s catalog lists halogen and LED light-source options. Confirm the required option and electrical supply when ordering.
Which sizes are shown in the catalog?
The BL101-1 drawing lists DN80, DN100, DN125 and DN150. Other connection requests should be reviewed against a project drawing rather than assumed from this table.
Can I use the BL101-2 dimensions for BL101-1?
No. BL101-1 and BL101-2 are separate catalog models. Use the BL101-1 reference dimensions above and obtain the approved interface drawing before fabrication.
Plan your vessel observation point with Borlan Fluid: contact our team with your vessel drawing and operating conditions. Explore the BL101-1 / BL101-2 sight glass light category, and visit the Borlan Fluid YouTube channel for company and product videos.
Borlan Fluid can help you throughout the design, sample, production, pack & supply.Borlan Fluid has its own design team which is able to deliver design services for Stainless Steel Tank Accessories.We will send you sample for the brochure after confirmed details.We can also offer you 3D model of our stock product.
Stock sample can send out within 1 day, custom sample doing time is 5-10 days. 1~100pcs
production time is 7~10 days, 500~1000pcs production time is 10~15 days. 1000~3000pcs
production time is 15~20 days.
a).You send us artwork.
b).You pay 30% deposit, if less than 100pcs, we suggest you pay full amount because production time will be quick (7~10 days).
c).We make a digital print proof sample take picture and video for you confirmation.
d).Start production.
e).Balance Paying before package sending out.
We are a professional manufacturer specializing in stainless steel sight glasses, sight glass lights, and tank accessories.
All products are designed and manufactured in our own factory, allowing us to control quality, lead time, and customization.
We supply a full range of stainless steel tank and pipeline accessories, including:
Sight glasses (union, flanged, pipe, fused, tubular)
Sight glass lights (integrated and separate types)
Explosion-proof sight glass lights
Manways and manholes
Spray balls and cleaning accessories
Sanitary fittings and customized tank accessories
Our standard materials include:
304 stainless steel
316 / 316L stainless steel
Other materials can be provided upon request depending on application requirements.
Yes.
All sight glass lights are CE certified, and comply with relevant CE conformity requirements.
Explosion-proof models can additionally comply with ATEX requirements when specified.
Yes.
We provide explosion-proof sight glass lights suitable for hazardous environments such as chemical, pharmaceutical, and petrochemical industries.
Please inform us of the required explosion-proof standard (e.g. ATEX、EX) when making an inquiry.
Yes.
Custom sizes and non-standard dimensions are available upon request.
We can customize:
Diameter and thickness
Connection types (flanged, clamp, welded, union)
Glass type
Lighting configuration
Available connection types include:
Flanged (DIN / ANSI / customized)
Union
Tri-clamp (sanitary)
Welded
Pipe inline connections
Our products are widely used in:
Chemical processing
Pharmaceutical manufacturing
Food & beverage
Biotechnology
Cosmetics
Environmental and water treatment industries
Yes.
We supply separate sight glass lights designed for external illumination of existing sight glasses.
Integrated and separate configurations are both available.
Depending on the model, we offer:
AC power supply
DC power supply
Battery-powered models
Voltage, wattage, and cable length can be customized.
Yes.
We supply sanitary stainless steel sight glasses and accessories, suitable for hygienic applications in food, beverage, and pharmaceutical industries.
All products undergo:
Material inspection
Dimensional inspection
Functional testing
Certification verification (CE where applicable)
This ensures consistent quality and reliability.
Lead time depends on:
Product type
Quantity
Customization requirements
Standard products usually have shorter lead times, while customized products may require additional production time.
Yes.
We support OEM and customized branding for overseas customers, including product marking and packaging.
You can contact us by:
Website inquiry form
Providing drawings or specifications if customization is required
Our sales team will respond with technical confirmation and quotation.
